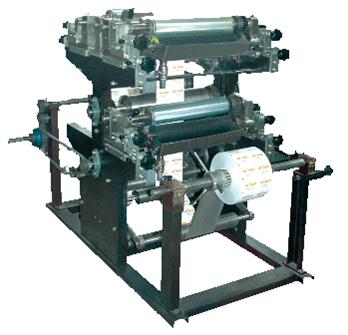

Width of the machine is 90 cm and it has 3 colors printing unit for printing 30 cm, and it can print 3 colors on a single surface. The machine can print with cliche and transfer the dye through tram cylinder. In-chamber cylinder is rubber, and the cylinder dyeing the cliche is the tram. (Cliche cylinder and tram cylinder are eloxal steel) The machine has roller loading engine and roller shaft is air-driven. There are two pieces of cylinders in the roller wrapping part and they are sometimes wrapping. Wrapping shaft is air-driven. Printing units on the machine are commanded by air.
PRINTING SYSTEM TECHNICAL SPECIFICATIONS
Capacity :600m/hour
Bobbin İnside: 76mm
Outside: 500 mm
Drying Hot or normal air drayed
Feeding : Speed Controlled
Control: Electro mechanic
Power Supply:3 KW 220 / 380 V , 3 Phase 50 - 60 Hz.
Dimensions: 1450 mm x 1505 mm Height 1660 mm
Weight: 850 kg
PRODUCTS TO BE PRINTED
PE ” ( Poly Ethylene )
LDPE ” ( Low Density Poly Ethylene )
MDPE ” ( Middle Density Poly Ethylene )
HDPE ” ( High Density Poly Ethylene )
PET ” ( Poly Ethylene Terephthalate )- PP ” Polypropylene - CPP ” Gelatin ( Cast PP )- OPP ” Single Orient Tensed PP ( Orient PP )- BOPP ” PP ( Bi-orient Tensed PP )- PA ” Polyamide ( Nylon )- PVC ” ( Polyvinyl Chloride )- PVdC ” ( Polyvinyl dichloride )
PS ” Polystyrene
Metalized ” ( Evaporation Coating )
Laminated Materials
Folio – Paper and Carton
Craft Paper - tissue paper
Cellophane
Nonwoven ” Nonwoven Surface
Glossy Paper
Machine is painted by water and corrosion resistant two-component epoxy primer and paint
Note: Our company reserves the right to make changes in technical specifications of the machines as deemed necessary without prior notice.
Made in Turkey
